The latest version of the compound high-performance braking system helps give the new BMW M6 Coupe and Convertible outstanding stopping power. Its stand-out features include even …

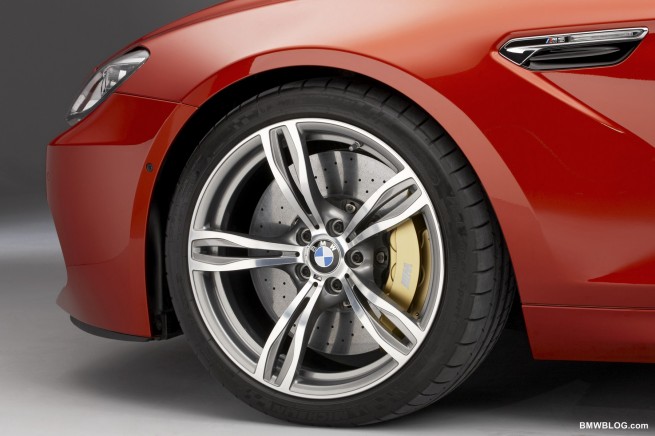

The latest version of the compound high-performance braking system helps give the new BMW M6 Coupe and Convertible outstanding stopping power. Its stand-out features include even lower weight, excellent feel and fade-free performance even under heavy loads. The diameter of the inner-vented and perforated brake disks is 400 millimetres at the front and 396 millimetres at the rear. The six-piston fixed-calliper brakes at the front axle – painted dark blue metallic and complete with the M logo – are radially bolted to the pivot bearing.

The M carbon-ceramic brakes available for the first time for the new  BMW M6 Coupe and Convertible (in conjunction with 20-inch M light-alloy wheels) are without parallel worldwide and take the cars’ stopping power to another new level.

New BMW M6: The Brakes

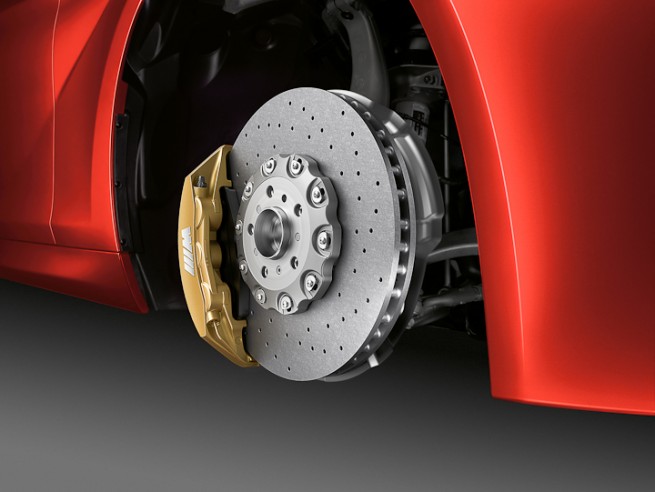

The brake discs measure 410 millimetres in diameter at the front axle and 396 millimetres at the rear. Made from a new type of carbon-fibre compound ceramic, the discs boast even greater resistance to heat and combine this with significantly reduced rotating masses. The M carbon-ceramic brakes are 19.4 kg (42.8 lb) lighter than the standard-fitted items, yet the innovative material also displays exceptional resistance to wear, and the operating life of the discs is many times that of conventional equivalents.

The optional M carbon-ceramic system also sees six-piston fixed-calliper brakes at the front teaming up with single-piston floating-caliper compound disk brakes at the rear. The callipers can be identified by their special gold-coloured paint finish.

New BMW M6: The Brakes

[Source: M-Power ]
